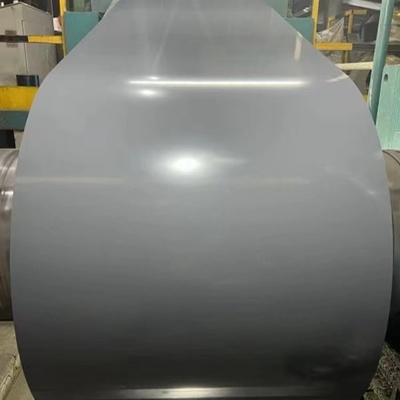

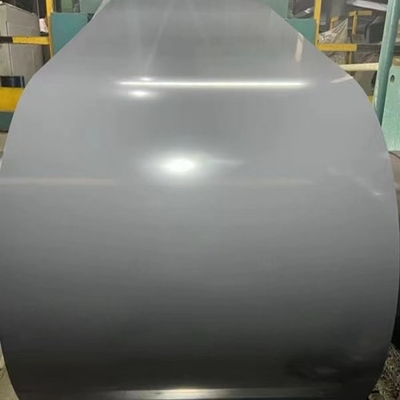

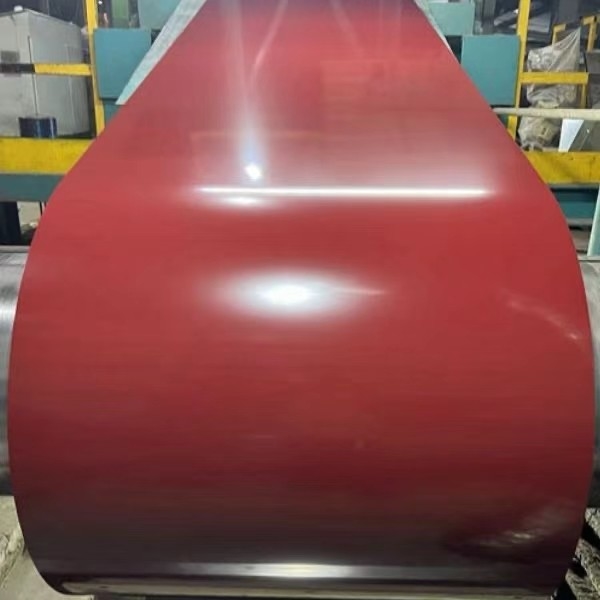

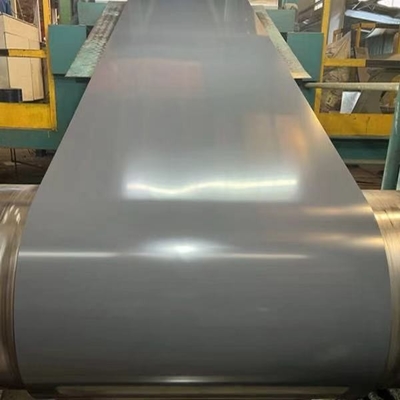

AISI Standard DX51D 610MM Декорация деревянной PPGI стальной катушки
Подробная информация о продукте:
| Место происхождения: | КНР |
| Фирменное наименование: | Wooden PPGI---HUIYI |
| Сертификация: | SGS,ISO,BV |
| Model Number: | CGCC,CGLCC, CGCH , G550,G400,G450,DX51D |
Оплата и доставка Условия:
| Количество мин заказа: | 25 тонн |
|---|---|
| Цена: | based on true requirements |
| Упаковывая детали: | Стандартное экспортируя package.wrapped с водоустойчивой бумагой, фильмом PE высокой плотности, лист |
| Delivery Time: | 20-35days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5000 tons per month |
|
Подробная информация |
|||
| Color: | RAL Color | thickness: | 0.12-1.5mm |
|---|---|---|---|
| width: | under 1500mm | Идентификатор катушки: | 508mm, 610mm |
| Material: | GI,GL,SS Steel，Aluminium | Обработка поверхности: | Покрытые, оцинкованные, сухие, печатные |
| Standard: | ASTM,GB,JIS,AISI,DIN | Применение: | Крыша, декорация |
| Coil weight: | based on customers‘requirements | Zinc coating: | 30-275g/m2,40-600g/m2,40g/m2 - 275g/m2 |
| Выделить: | PPGI Декорация стальной катушки,Катушка 610MM PPGI стальная,Катушка DX51D PPGI стальная |
||
Характер продукции
■ Standard : JIS G3312-1998 , ASTM A755 , GB / T12754 - 2006
■ Grade : SPCC , SPCD , SPCE , DX51 / 52 / 53 / 54D + Z , Q195 / 215 / 235 And Etc
■ Base Metal : Cold Rolled Steel / Galvanized Steel / Galvalume Steel
■ Material Thickness : Normally 0.15 -1.5 mm
■ Width : 30 - 1500 mm ( Mainly in 914 mm ,1000 mm , 1219 mm and 1250 mm )
■ Coating : PE / PVDF / SMP
■ Coating Thickness : Min. Single Side - 50 g / sqm Max. Single Side - 275 g / sqm
■ Top Painting : 13 - 20 micrometer
■ Back Painting : 7 - 10 micrometer
■ Surface Finished Color : According To RAL Standard
■ Packing Condition : Seaworthy
Pre-painted coils are manufactured by applying high-performance paint coatings onto cold-rolled, galvanized, or Galvalume steel substrates. Combining aesthetic versatility with exceptional durability, these color-coated steel coils offer:
- Customizable Color Options: Available in a broad spectrum of colors to meet design requirements.
- Specialized Coatings: Engineered for specific applications (e.g., weather resistance, chemical protection).
- Wide Application Range: Suitable for both **interior and exterior uses, including architectural cladding, sandwich panels, and more.
Our pre-painted coils deliver long-lasting performance while maintaining vibrant finishes, making them ideal for demanding environments.
Color-coated steel offers outstanding decorative appeal, bendability, corrosion resistance, coating adhesion, and color fastness, making it a superior choice for modern construction applications.
As an eco-friendly and cost-effective alternative to wood panels, color-coated steel provides:
Easy installation – Reduces labor time and costs
Energy efficiency – Enhances building insulation performance
Stain resistance – Maintains aesthetics with minimal maintenance
| Buildings And Constructions | Workshop , Warehouse , Corrugated Roof And Wall , Rainwater , Drainage Pipe , Roller Shutter Door |
| Electrical Appliance | Refrigerator , Washer , Switch Cabinet , Instrument Cabinet , Air Conditioning , Micro - wave Oven , Bread Maker |
| Furniture | Central Heating Slice , Lampshade , Book Shelf |
| Carrying Trade | Exterior Decoration Of Auto And Train , Clapboard , Container , Insulation Board |
| Others | Writing Panel , Garbage Can , Billboard , Timekeeper , Typewriter , Instrument Panel , Weight Sensor , Photographic Equipment |
