0.12-2.0mm CGLCC Prepainted Galvalume Steel Coil For Construction materials
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | HUIYI-PPGL |
| Сертификация: | SGS, BV, ISO9001 |
| Номер модели: | CGLCC |
Оплата и доставка Условия:
| Количество мин заказа: | 25 тонн каждую толщину |
|---|---|
| Цена: | negotiated |
| Упаковывая детали: | Стандартный экспортный пакет. Завернутая водонепроницаемой бумагой. Затем пленка PE высокой плотност |
| Время доставки: | 20-35 дней |
| Условия оплаты: | L/C, T/T, D/P. |
| Поставка способности: | 50000 тонн в год |
|
Подробная информация |
|||
| Материал: | ASTM A653 | Тип покрытия: | PE/PVDF/HDP |
|---|---|---|---|
| Идентификатор катушки: | 508/610 мм | Толщина: | 0,12-2,0 мм |
| Ширина: | 600-1500 мм | Цинковое покрытие: | 30-275G/м2 |
| Толщина краски: | Вверху: 10-25 мкм ； назад: 5-8 мкм | Приложение: | Строительная отрасль, кровя |
| Выделить: | prepainted galvalume steel coil,CGLCC construction steel coil,0.12-2.0mm PPGL steel coil |
||
Характер продукции
0.12-2.0mm CGLCC Prepainted Galvalume Steel Coil For Construction Materials

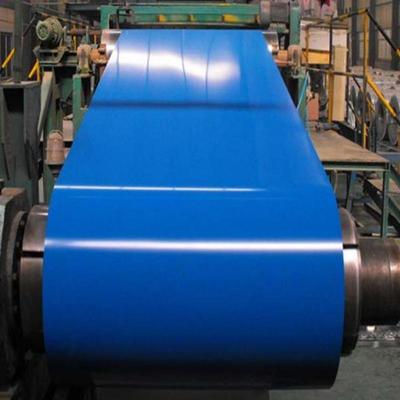

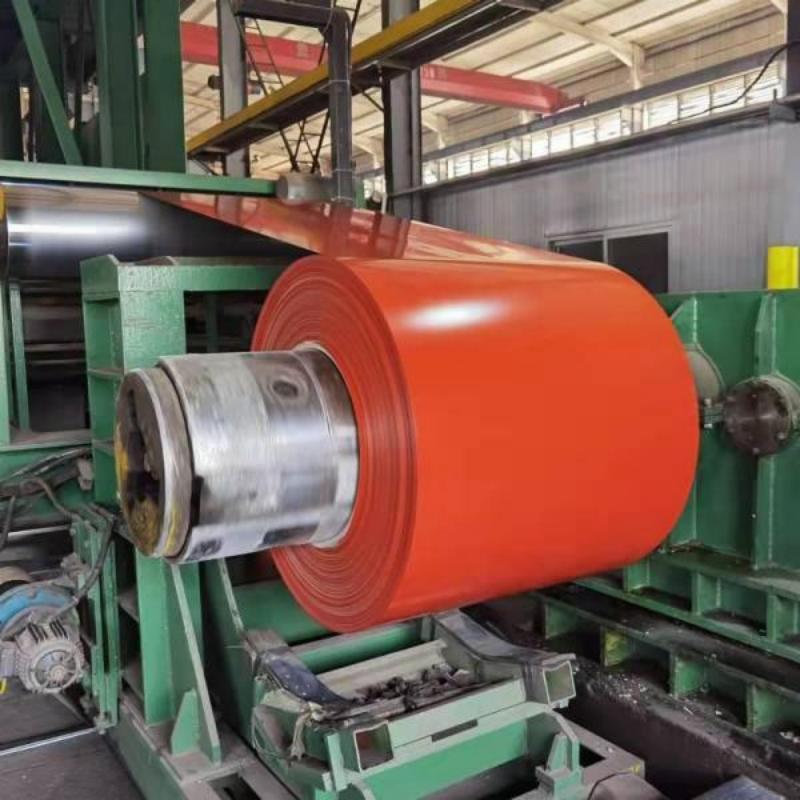

PPGL Steel Coil Introduction
CGLCC prepainted steel coils are engineered for superior performance in modern construction and industrial applications. Featuring a robust Galvalume substrate combined with a high-performance painted finish, these coils provide exceptional durability against environmental elements, excellent formability, and sustained aesthetic appeal. Designed for versatility, they are the ideal choice for projects demanding reliability and long-term value in diverse climatic conditions.
Technical Parameters
| Brand Name | Huiyi |
|---|---|
| Material | CGLCC |
| Top Paint | PE/PVDF/HDP |
| Color | Ral |
| Thickness range | 0.12mm - 2.0mm |
| Coil ID | 508mm / 610mm |
| Coil Weight | 3-8 Tons |
| Processing Service | Construction materials, Roll forming, Cutting, Bending, Perforating, Welding |
Key Applications
- Lightweight Architectural Cladding - Optimal for modern façades and interior linings due to its excellent strength-to-weight ratio, even in thinner gauges (0.12-0.4mm).
- Residential and Commercial Roofing - Used in standing seam roofs and tile-effect roofing systems, offering weather resistance and design flexibility.
- Partition and Ceiling Systems - Suitable for interior applications where precise forming, fire resistance, and aesthetic finish are required.
- HVAC and Electrical Enclosures - Provides good corrosion resistance and non-structural shielding for ductwork and electrical cabinets.
Packing And Shipping
Each coil is wrapped with VCI anti-rust paper, kraft paper, and PE protective film. Edges are secured with PP straps and edge guards. Export packaging uses ISPM15-certified wooden crates or pallets. Coils are clearly labeled with specifications, batch number, and weight. Desiccant bags are optional for high-humidity regions. Damage claims must be filed within 48 hours of receipt.
FAQ
Q1: How does CGLCC differ from standard PPGL?
A1: CGLCC uses a commercial-grade Galvalume base with tighter thickness tolerances (±0.04mm), making it better suited for precision architectural applications where lightweight and exact forming are critical.
Q2: Is CGLCC suitable for coastal environments?
A2: Yes. The aluminum-zinc alloy coating offers enhanced resistance to salt spray and moisture compared to regular GI materials, though additional protective coatings are recommended in highly aggressive environments.
Q3: Can CGLCC be used in high-temperature environments?
A3: The standard polyester coating performs well in temperatures up to 100°C. For higher thermal exposure, silicone polyester or PVDF coatings are advised.
Q4: How does pricing compare to PPGL?
A4: CGLCC is typically 5-8% more affordable than premium PPGL products, offering a cost-effective solution for mid-range structural and non-structural applications.
