304 Stainless Steel Customizable Modular Square Water Storage and Insulation Water Tank
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | HuiYi |
| Сертификация: | ISO, CE |
| Номер модели: | SUS304 |
Оплата и доставка Условия:
| Количество мин заказа: | 25 млн |
|---|---|
| Цена: | Подлежит обсуждению |
| Упаковывая детали: | Защитная пленка + защита кромок + деревянные поддоны со стальной обвязкой |
| Время доставки: | 15-30 дней |
| Условия оплаты: | T/T, L/C, D/P. |
| Поставка способности: | 5000 Мт/месяц |
|
Подробная информация |
|||
| Название продукта: | Квадратное хранилище воды | Материал: | 304 нержавеющая сталь |
|---|---|---|---|
| Размеры панели: | 1000х1000мм, 1000х500мм, 750х1000мм, 500х500мм | Толщина панели: | 4мм, 6мм, 8мм, 10мм, 12мм |
| Вариант изоляции: | 50мм ППУ/Миновая вата | Стандарт дизайна: | Национальный атлас 12С101 |
| Громкость диапазона: | На болтах, без инструментов | Гарантия: | 20 лет сохранения цвета |
| Выделить: | 304 stainless steel water tank,modular square water storage,insulation water tank with warranty |
||
Характер продукции
304 Stainless Steel Customizable Modular Square Water Storage and Insulation Water Tank

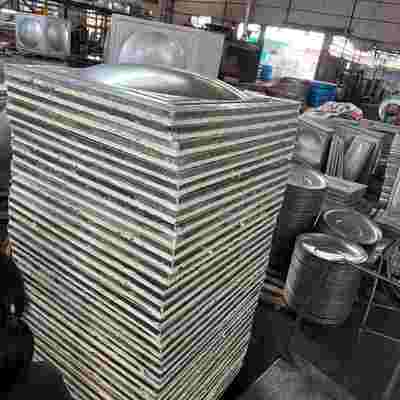

Our 304 Stainless Steel Customizable Modular Square Water Storage and Insulation Water Tank provides a modern, reliable solution for liquid storage needs. Engineered with high-quality materials that comply with ISO and CE standards, this tank offers superior hygiene and corrosion resistance combined with exceptional design flexibility. The core structure features precision-pressed, one-piece formed panels manufactured using CNC punching and automatic demolding technology, ensuring consistent quality, strength, and leak resistance.

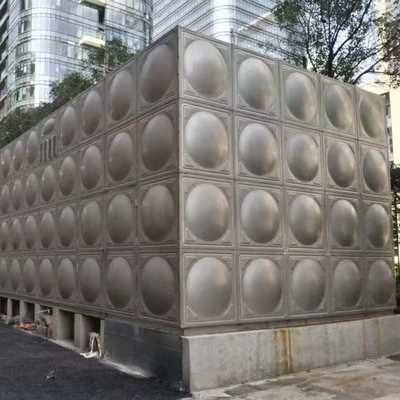

The innovative modular design allows for complete customization. Using standardized panels (500×500mm, 500×1000mm, 750×1000mm, 1000×1000mm), the tank can be assembled into any required rectangular or square configuration, from small units to capacities exceeding 2000m³. The mechanically designed, robust structure ensures high strength and wind load resistance, making it suitable for a wide range of applications. The bolted system enables quick and precise, tool-free installation and future expansion. Optional high-density polyurethane foam insulation maintains water temperature and reduces energy costs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | SUS304 / 304 Stainless Steel (8.0% Ni min), Complies with GB/T standard |
| Standard Panel Sizes | 1000x1000mm, 1000x500mm, 750x1000mm, 500x500mm |
| Panel Thickness | 4mm, 6mm, 8mm, 10mm, 12mm (Customizable based on hydrostatic pressure) |
| Internal Structure | Hot-dip galvanized steel reinforcement frame |
| Insulation Option | 50mm thick PUF insulation (Rockwool available), Cladding with Stainless Steel/Color Steel |
| Accessories | Manhole, Vent with filter, Overflow, Inlet/Outlet (BSP/Flange), Ladder, Liquid level gauge |
| Volume Range | 1 m³ to 3000 m³ |
| Welding Process | Argon arc welding process to ensure structural integrity and prevent crystal corrosion |
| Quality Inspection | Passed 24-hour hydrochloric acid spray test and 1200-hour neutral salt spray test, superior to GB/T 3280-2015 standard |
| Application Standard | Designed and manufactured in accordance with national building standard design atlas 12S101 |
Applications
- Potable Water Storage: For hotels, hospitals (e.g., Bangkok Hospital), and residential complexes.
- Industrial Process Water: Cooling water, process storage in pharmaceuticals (e.g., Dongguan Pharma) and steel plants (e.g., Qingshan Steel).
- Fire Fighting Systems: As a dedicated water reservoir.
- Thermal Storage: The insulation option makes it ideal for storing hot water or chilled water.
- Agricultural & Irrigation Water Storage.
Customization Options
"Customizable" is at the heart of our product. We understand that every project is unique. Beyond standard sizes, we specialize in creating tanks for irregular spaces and specific requirements, as demonstrated by our successful project for Bangkok Hospital. We offer tailored solutions for:
- Non-Standard Dimensions & Shapes
- Specific Nozzle Orientations and Sizes
- Custom Insulation Thickness and Cladding Materials
Packing and Shipping

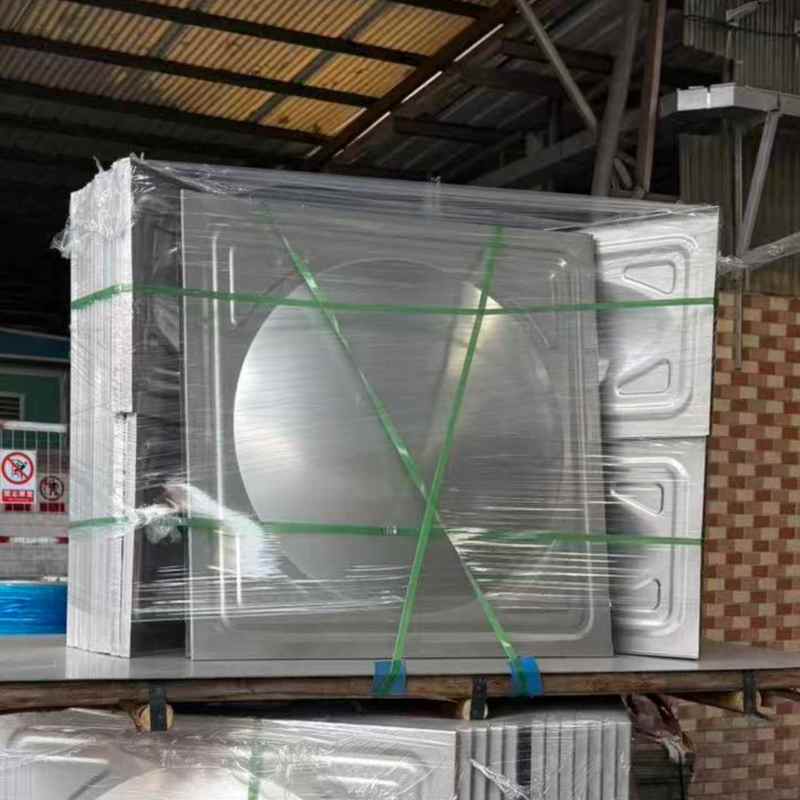

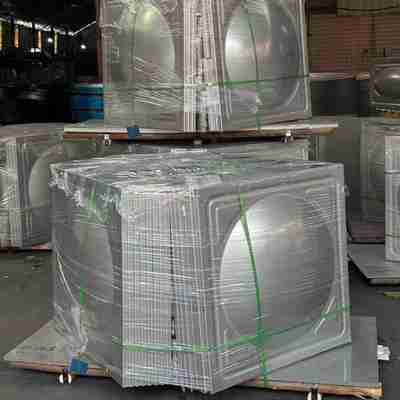

- Triple-Shield Packaging: Components are protected with surface film and edge guards, then securely fastened on wooden pallets with steel strapping.
- Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Frequently Asked Questions
Q: When will you arrange production for square water storage?
A: In 7 workdays when we receive your advance payment.
Q: What's the payment term for square water storage?
A: 30-50% TT in advance (based on your quantity), 70% balance against copy B/L in 7 workdays.
Q: When will you send BL copy?
A: In 3-5 workdays after shipment date.
Q: When will you send original Documents?
A: In 3-5 workdays when we get the balance.
Q: What is the lead time for samples?
A: Samples are available in 7-10 days after detailed requirements confirmation.
Q: What is your working time?
A: Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry on the next working day.
Хотите узнать больше подробностей об этом продукте
