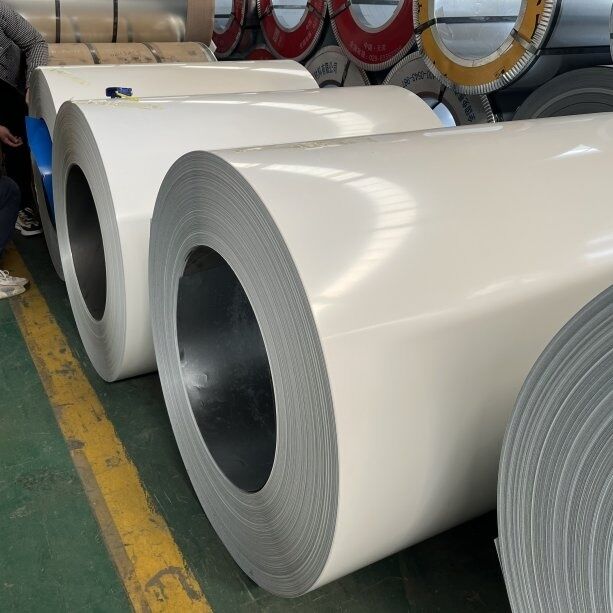

Insulating PVDF Coated DX51D+AZ Prepainted Galvalume Steel Coil for Energy Efficient Roofs
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | HUIYI-PPGL |
| Сертификация: | ASTM A792, JIS G3321, EN 10346, ISO9001 |
| Номер модели: | DX51D+AZ, СГЛЦК |
| Документ: | HUIYI CATALOGUE.pdf |
Оплата и доставка Условия:
| Количество мин заказа: | 25 тонн каждую толщину |
|---|---|
| Цена: | negotiated |
| Упаковывая детали: | Стандартный экспортный пакет. Завернутая водонепроницаемой бумагой. Затем пленка PE высокой плотност |
| Время доставки: | 20-35 дней |
| Условия оплаты: | Л/К, Т/Т, Д/П |
| Поставка способности: | 50000 тонн в год |
|
Подробная информация |
|||
| Название продукта: | Prepainted сталь Galvalume | Оценка: | DX51D+AZ |
|---|---|---|---|
| Цинковое покрытие: | 80-180 г/㎡ | Состав покрытия: | ~55% алюминий, ~43,5% цинк, ~1,5% кремний. |
| Тип покрытия: | ПЭ/СМП/ПВДФ/ПВД | Толщина краски: | Вверху: 10-25 мкм ； назад: 5-8 мкм |
| Идентификатор катушки: | 508 мм или 610 мм | Ключевая функция: | Изоляционный/отражающий солнечное тепло |
| Выделить: | Insulating PPGL Steel Coil,PVDF Coated Galvalume Steel Coil,DX51D+AZ Prepainted Galvalume Steel Coil |
||
Характер продукции
Our Insulating PVDF DX51D+AZ Prepainted Galvalume Steel Coil is engineered specifically for energy-saving roofing applications. This premium product combines a durable DX51D+AZ galvalume steel base with a high-performance PVDF topcoat, delivering exceptional long-term corrosion resistance, superior color retention, and outstanding weatherability. The key insulating property reflects solar heat to enhance building energy efficiency and significantly reduce cooling costs, providing a durable, low-maintenance "cool roof" solution for modern construction projects.
| Parameter | Specification |
|---|---|
| Base Material | Galvalume Steel |
| Protective Coating | Hot-dip 55% Aluminum-Zinc Alloy |
| Topcoat / Finish | High-quality PVDF Paint |
| Coating Weight Range | AZ80 - AZ180 g/m² |
| Thickness Range | 0.3mm - 2.0mm |
| Width Range | 600mm - 1,500mm |
| Standard Coil Weight | 3-8 tons |
| Surface Treatment | Passivation, Oiled, or Anti-Fingerprint |
- Energy-Efficient Building Roofs: Primary application for standing seam roofs, corrugated sheets, and other roofing systems designed to meet green building standards and reduce cooling costs.
- Commercial & Industrial Wall Cladding: Provides a long-lasting, attractive, and thermally efficient facade for warehouses, factories, and commercial buildings.
- Architectural Canopies & Sunshades: Used in structures designed to provide shade while maintaining high visual and corrosion performance.
- Renovation & Retrofit Projects: Excellent solution for upgrading existing buildings to improve energy efficiency and appearance.
VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Pre-shipment inspection and moisture indicators for transit protection.
